Single Handle Lavatory Faucet P4B-500ORB
- Metal Lever Handle
- Ceramic Cartridge
- 1 or 3 Hole Installation
- Optional Deckplate Included
- All Metal Pop Up
- Oil Rubbed Bronze
Specifications

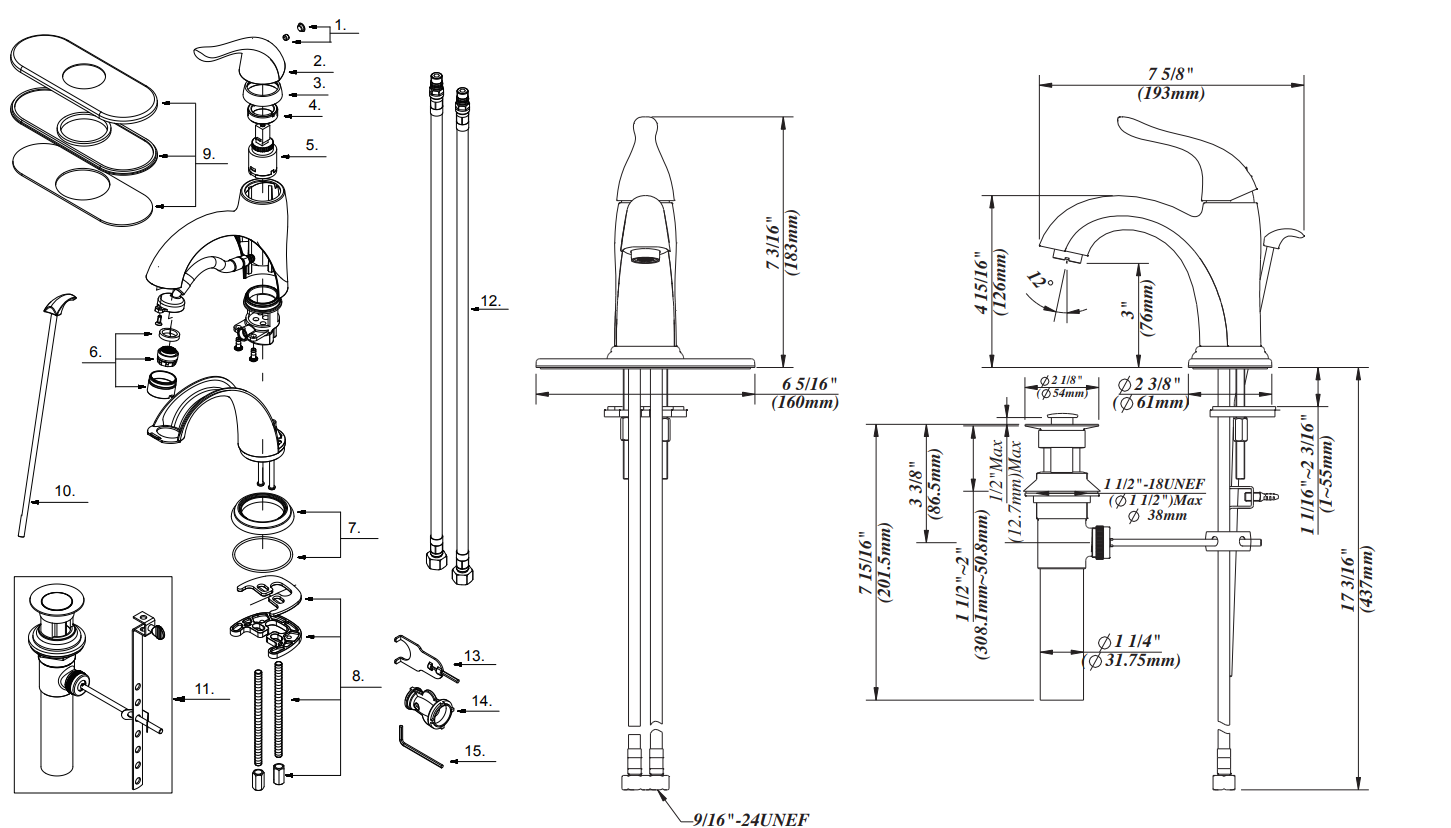

| No. | Name | Part No. |
|---|---|---|
| 1 | Index Button | A66G325 |
| 2 | Metal Handle | A069215 |
| 3 | Trim Cap | A103005 |
| 4 | Locking Nut | A104322 |
| 5 | Ceramic Disc Cartridge | A507906N |
| 6 | Aerator | A500026N-51-T |
| 7 | Spout Trim Ring | A66F537 |
| 8 | Mounting Hardware Assembly | A603106 |
| 9 | Cover Plate & Putty Plate | A66F594 |
| 10 | Lift Rod | A124350 |
| 11 | Pop-up Assembly | A505016 |
| 12 | Pop-up Assembly (for ORB finish) | A556200 |
| 13 | Supply Hose | A105652W |
| 14 | Wrench | A031022NI |
| 15 | Aerator Wrench (20.6 * 27.4 * 40 * 36 mm) | A031245 |
| 16 | Hex Wrench (H2.5 * 19 mm L * 53mmL) | A031000NI |
