Single Handle Culinary Kitchen Faucet P4H-155SS
- Metal Lever Handle
- Ceramic Cartridge
- Includes Two Spray Heads
- 1 or 3 Hole Installation
- Optional Deckplate Included
- 1.8 GPM Flow Rate @ 60 PSI
- Integrated Supply Lines
- California Energy Commission Compliant
- Stainless Steel
Specifications

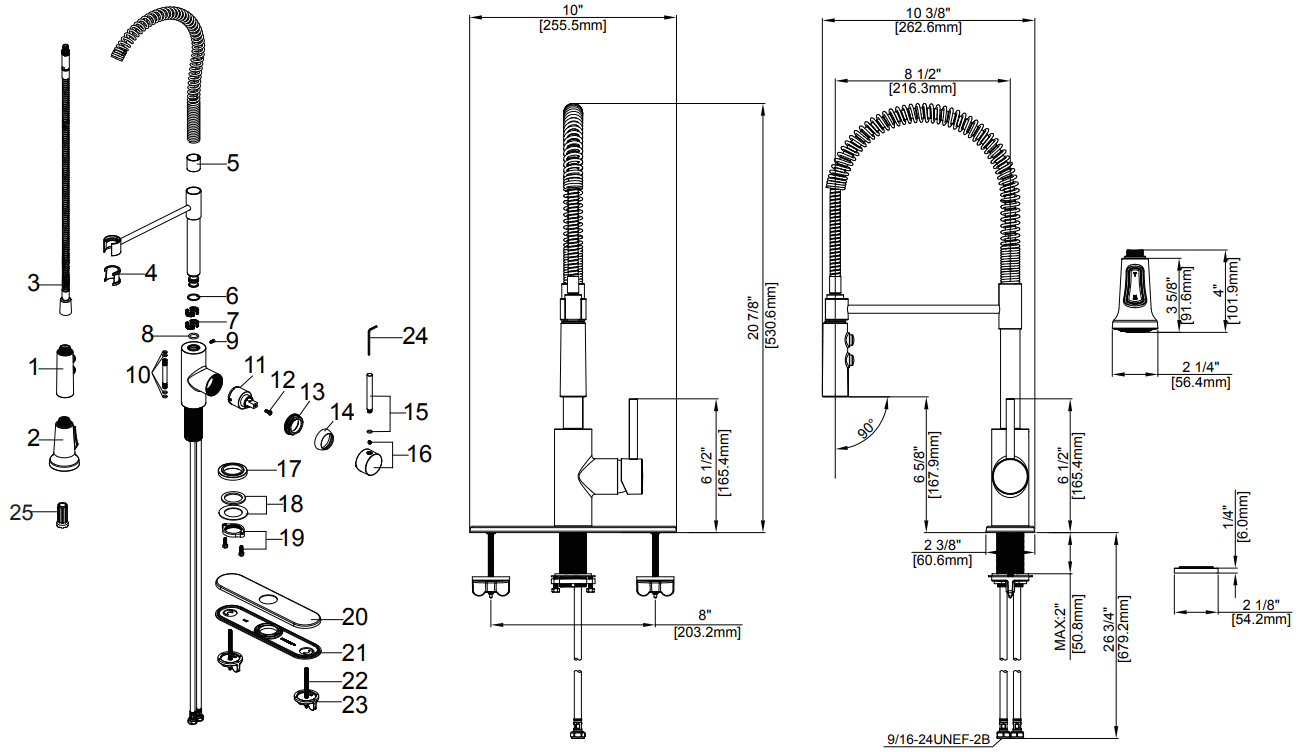

| No. | Name | Part No. |
|---|---|---|
| 1 | Spray Head and Hose | RP38368* |
| 2 | Spray Head and Hose | RP38369* |
| 3 | Hose | RP38320* |
| 4 | Inverter | RP64201 |
| 5 | Washer | RP64242 |
| 6 | Washer | RP64150 |
| 7 | Washer | RP64050 |
| 8 | O-ring | RP60008 |
| 9 | Screw | RP50206 |
| 10 | O-ring | RP60123 |
| 11 | Cartridge | RP20044 |
| 12 | Screw | RP50015 |
| 13 | Bonnet | RP70548 |
| 14 | Cap | RP80132* |
| 15 | Handle | RP13334* |
| 16 | Handle Seat | RP17171* |
| 17 | Flange | RP80580* |
| 18 | Rubber washer & Metal Washer | RP64241 |
| 19 | Nut & Screw | RP56123 |
| 20 | Escutcheon | RP80445* |
| 21 | Gasket | RP80581 |
| 22 | Bolt | RP50071 |
| 23 | Mounting Nut | RP56109 |
| 24 | Hex Allen Wrench | RP70221 |
| 25 | Plastic Wrench | RP70434 |
